With the unique internal Compensation System, these swing clamp cylinders maintain the clamping point with maximum precision over a long operating time.
They can be equipped with clamp arm position control valves to ensure precise workpiece clamping. Further accessories are the VRF flow control valve that controls the swing speed and the metal wiper designed to protect the main wiper.
The cylinder bodies are made of heat-treated free machining steel to enhance wear resistance and ensure smooth running.
Comparison table of our products
| Cylinders | Rotating type | Stroke (mm) | Effective piston area (clamp./unclamp.) cm2 | Pressure (min-max) | HPC | Compensation System | Sequence valve (E) | |
|---|---|---|---|---|---|---|---|---|
| bloc. | tot. | |||||||
| SR16.0 FD/PD/CD |
double-acting | 14 | 22 | 2.51 / 4.52 | 30-500 | FD/CD |
√ |
FD |
| SR16.0 FS |
single-acting | 14 | 22 | 2.51 | 30-500 |
√ |
X |
X |
| SR16.38 FD/PD/CD |
double-acting | 30 | 38 | 2.51 / 4.52 | 30-500 | FD/CD |
√ |
FD |
| SR18.0 FD/PD/CD |
double-acting | 14 | 22 | 1.98 / 4.52 | 30-500 | FD/CD |
√ |
FD |
| SR18.0 FS |
single-acting | 14 | 22 | 1.98 | 30-500 |
√ |
X |
X |
| SR18.25 FSC |
single-acting | 13 | 25 | 1.98 | 30-500 |
√ |
√ |
X |
| SR18.38 FD/PD/CD |
double-acting | 30 | 38 | 1.98 / 4.52 | 30-500 |
√ |
√ |
FD |
| SR22.0 FD/PD/CD |
double-acting | 15 | 25 | 5.27 / 9.07 | 30-500 | FD/CD |
√ |
FD/PD |
| SR22.30 FSC |
single-acting | 15 | 30 | 5.27 | 30-500 |
√ |
√ |
X |
| SR22.35 FD/PD/CD |
double-acting | 25 | 35 | 5.27 / 9.07 | 30-500 | FD/CD |
√ |
FD/PD |
| SR22.50 FD/PD/CD |
double-acting | 40 | 50 | 5.27 / 9.07 | 30-500 | FD/CD |
√ |
FD/PD |
| SR25.0 FD/PD/CD |
double-acting | 15 | 25 | 4.17 / 9.07 | 30-500 | FD/CD |
√ |
FD/PD |
| SR25.0 FS |
single-acting | 15 | 25 | 4.17 | 30-500 |
√ |
X |
FD/PD |
| SR25.50 FD/PD/CD |
double-acting | 40 | 50 | 4.17 / 9.07 | 30-500 | FD/CD |
√ |
FD/PD |
| SR28.0 FD/PD/CD | double-acting | 16 | 28 | 9.75 / 15.9 | 30-500 | FD/CD |
√ |
FD/PD |
| SR28.66 FD /PD |
double-acting | 54 | 66 | 9.75 / 15.9 | 30-500 | FD |
√ |
FD/PD |
| SR35.0 FD/PD /CD |
double-acting | 21 | 36 | 14.1 / 23.8 | 30-500 |
X |
√ |
FD |
| SR45.0 FD/PD |
double-acting | 36 | 51 | 17.3 / 33.2 | 30-500 |
X |
√ |
FD/PD |
SR16
Double-acting or Single-acting swing clamp cylinder
SR 16 | Effective clamping force / Swing times
SR 16 HPC | Effective clamping force / Swing times
SR18
Double-acting or Single-acting swing clamp cylinder

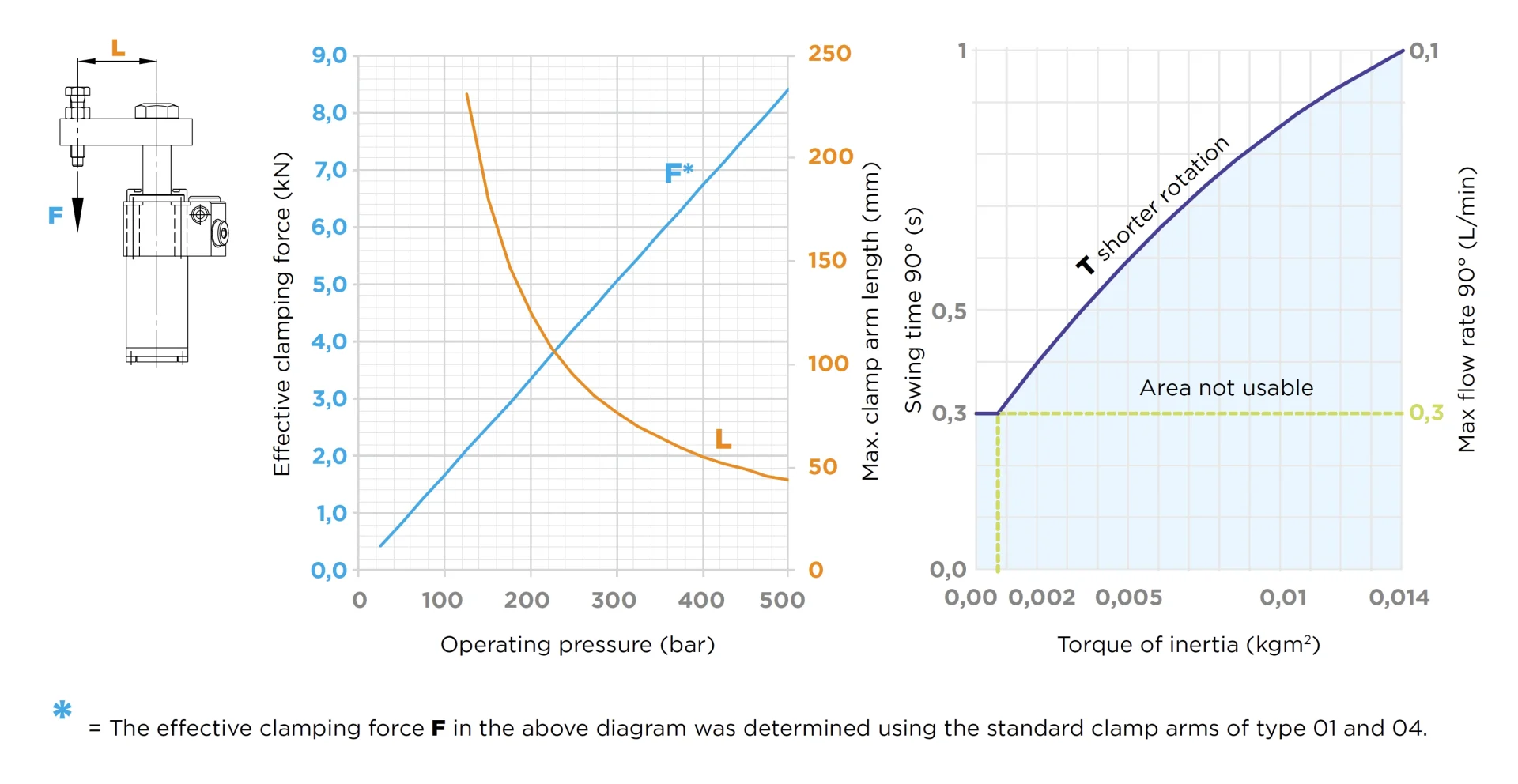

SR 18 | Effective clamping force / Swing times
SR 18 HPC | Effective clamping force / Swing times
SR22
Double-acting or Single-acting swing clamp cylinder
SR 22 | Effective clamping force / Swing times
SR 22 HPC | Effective clamping force / Swing times
SR25
Double-acting or Single-acting swing clamp cylinder
SR 25 | Effective clamping force / Swing times
SR 25 HPC | Effective clamping force / Swing times
SR28
Double-acting or Single-acting swing clamp cylinder
SR 28 | Effective clamping force / Swing times

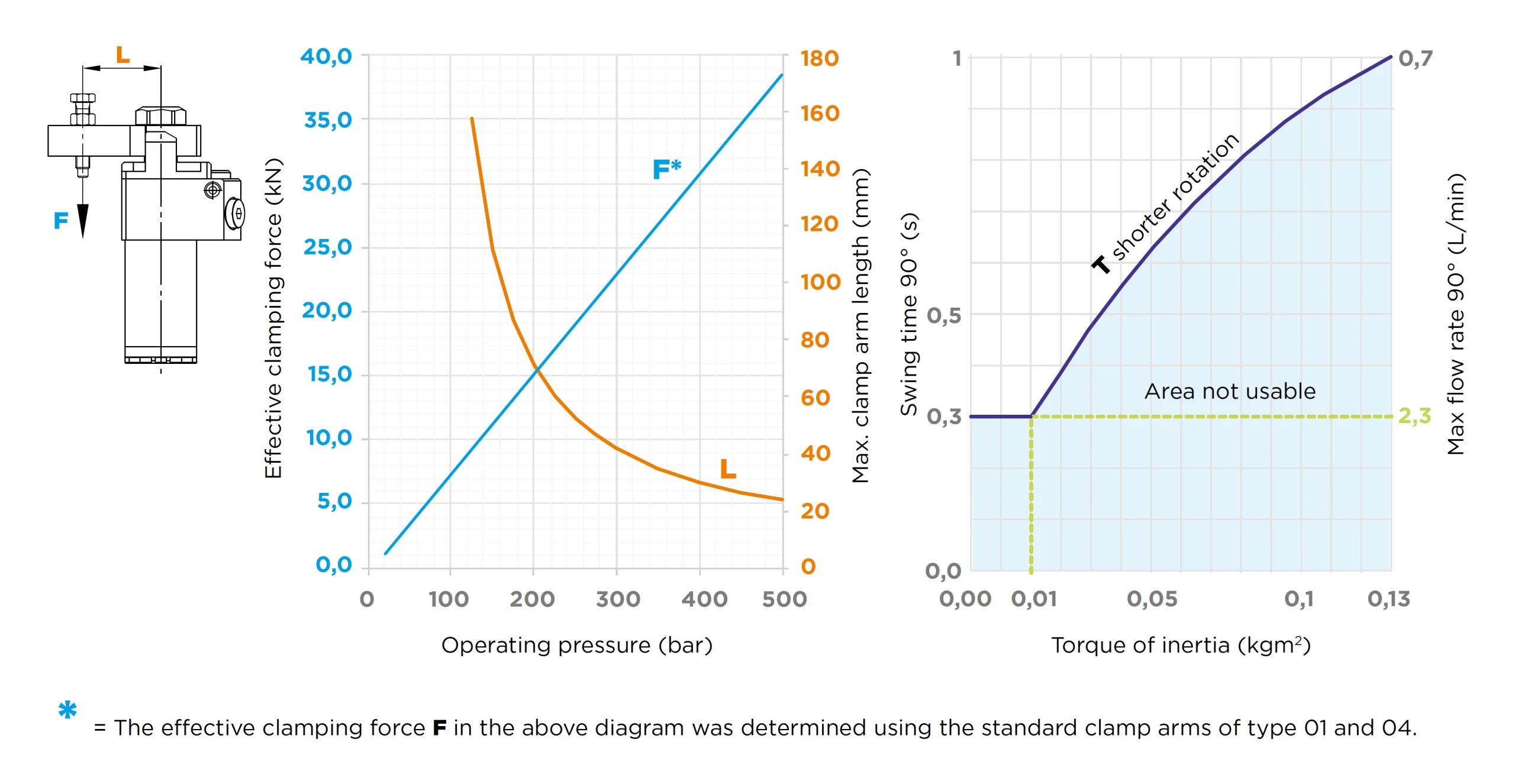

SR 28 HPC | Effective clamping force / Swing times
SR35
Double-acting or Single-acting swing clamp cylinder
SR 35 | Effective clamping force / Swing times
SR45
Double-acting or Single-acting swing clamp cylinder
SR 45 | Effective clamping force / Swing times
